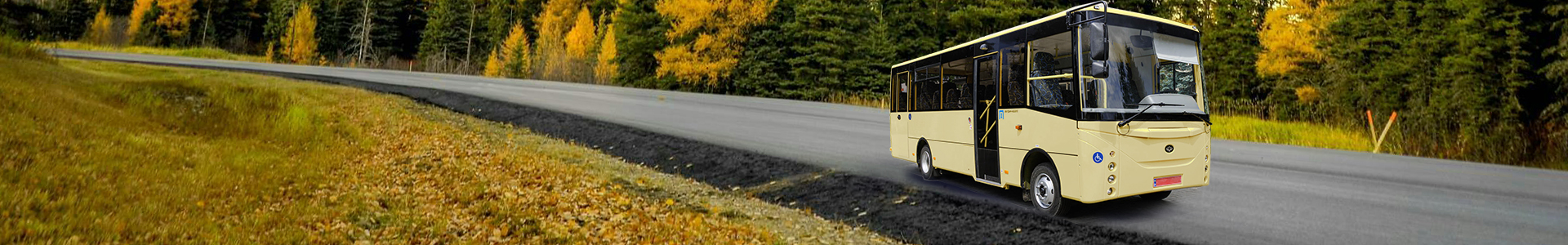

Intercity (suburban) bus
The 8.21 m long bus is designed to operate on intercity and suburban routes. The total passenger capacity is 42 people, of which 29 are seats.
The design uses an aggregate base with a modern Euro 5 engine manufactured by Ashok Leyland (India), which provides an optimal combination of efficiency, reliability and compliance with environmental requirements.
Specifications
|
Model |
А22212 |
|
Acknowledgement |
Intercity, suburban |
|
Length (spare wheel) / width / height, mm |
8210/2300/2780 |
|
Wheelbase, mm |
4400 |
|
Track, front/rear, mm |
1886/1715 |
|
Total permissible weight, kg |
9850 |
|
Curb weight, kg |
6650 |
|
Maximum speed, not less than, km/h |
90 (speed limiter) |
|
Engine model |
Ashok Leyland H6E5SD123 |
|
Engine location |
front longitudinal |
|
Number and arrangement of cylinders |
6, inline |
|
Volume, litres |
5,759 |
|
Power, kW (hp) |
123(167) |
|
Torque, Nm |
550 at 1200-1900 |
|
Ecological standard |
Euro 5 |
|
Gearbox |
Ashok Leyland (licensed by ZF) |
|
Type |
manual |
|
Number of forward gears |
5 |
|
Steering |
Ashok Leyland (licensed by ZF) |
|
Power steering |
Integral type |
|
Suspension: |
|
|
Frontal |
dependent with leaf spring |
|
Rear |
dependent air suspension |
|
Brake system: |
|
|
Type |
Air brake |
|
Service brake system |
Dual circuit |
|
Auxiliary brake system |
Engine brake |
|
Emergency/secondary brake system |
one circuits of the main brake system |
|
ABS |
+ |
|
Body |
body-on-frame type |
|
Passenger capacity, people |
42 |
|
Number of seats (without driver) |
30 |
|
Number of seats for priority category passengers |
4 |
|
Wheels / Tyres |
6,75х17,5 / 235/75R17,5 |
|
Electrical equipment, rated voltage, V |
24 |
Warranty – 2 years or 100,000 km, whichever comes first.
