Model
|
|
|
Acknowledgement
|

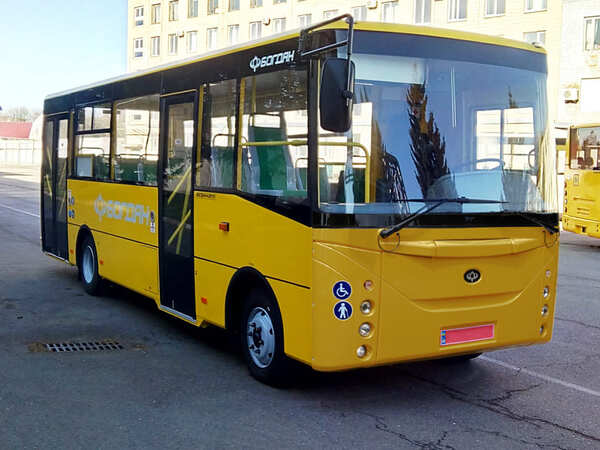

Low-entry city bus with a low-floor rear section, adapted for passengers with reduced mobility
|
|
Length (spare wheel) / width / height, mm
|
8210/2300/2780
|
|
Wheelbase, mm
|
4400
|
|
Track, front/rear, mm
|
1886/1715
|
|
Total permissible weight, kg
|
10300
|
|
Curb weight, kg
|
6100
|
|
Maximum speed, not less than, km/h
|
90
|
|
Engine model
|
Ashok Leyland H6E5SD123
|
|
Engine location
|
front longitudinal
|
|
Number and arrangement of cylinders
|
6, inline
|
|
Volume, litres
|
5,759
|
|
Power, kW (hp)
|
123(167)
|
|
Torque, Nm
|
550 at 1200-1900
|
|
Ecological standard
|
Euro 5
|
|
Gearbox
|
Ashok Leyland (licensed by ZF)
|
|
Type
|
manual
|
|
Number of forward gears
|
5
|
|
Steering
|
Ashok Leyland (licensed by ZF)
|
|
Power steering
|
Integral type
|
|
Suspension:
|
|
|
Frontal
|
dependent with leaf spring
|
|
Rear
|
dependent air suspension
|
|
Brake system:
|
|
|
Type
|
Air brake
|
|
Service brake system
|
Dual-circuit
|
|
Auxiliary brake system
|
Engine brake
|
|
Emergency/secondary brake system
|
one circuits of the main brake system
|
|
ABS
|
+
|
|
Body
|
body-on-frame type
|
|
Passenger capacity, people
|
61
|
|
Number of seats (without driver and crew)
|
17+4 folding (optional)
|
|
Number of seats for priority category passengers
|
4
|
|
Wheels / Tyres
|
6,75х17,5 / 235/75R17,5
|
|
Electrical equipment, rated voltage, V
|
24
|
